PanoLab

PanoLab

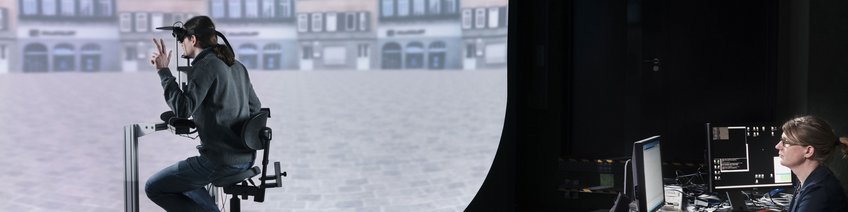

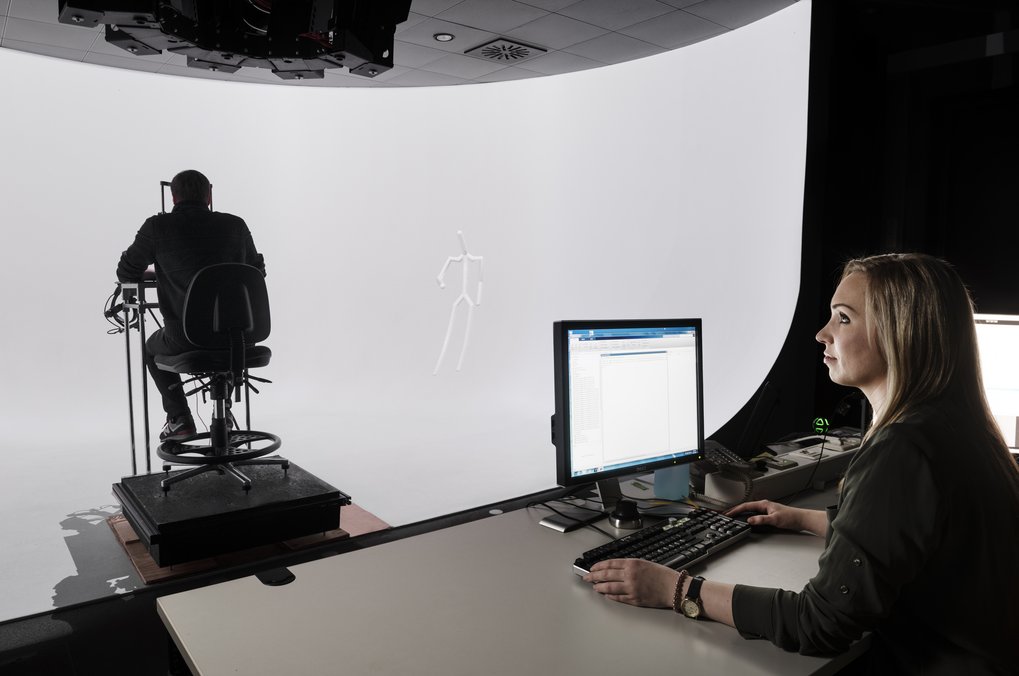

The PanoLab was used to conduct experiments on spatial perception, spatial orientation, and perception-based actions. One important aspect for true-to-life simulation was the size of the illuminated visual field. Large-scale projection of images in the PanoLab made it possible for us to present a simulation over nearly the entire human visual field. In this way, we achieved very realistic simulations and also had the possibility of systematically studying different areas of the visual field in terms of their importance for human perception.

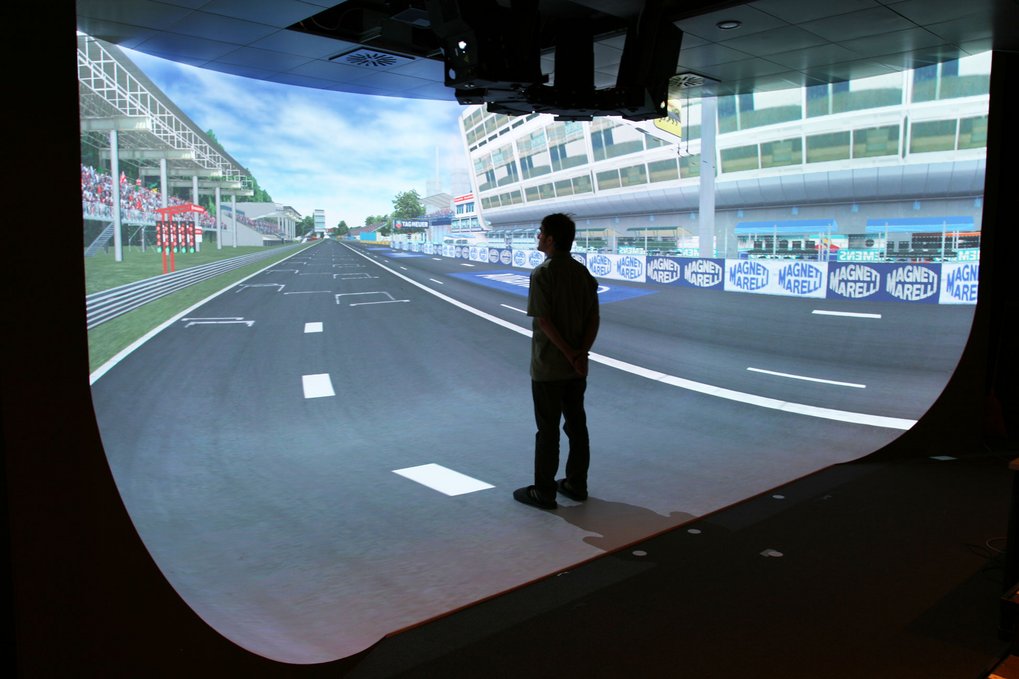

We had initially employed a large screen, half-cylindrical virtual reality projection system to study human perception since 1997. Studies in a variety of areas have been carried out, including spatial cognition and the perceptual control of action. In 2005, we made a number of fundamental improvements to the virtual reality system. Perhaps the most noticeable change was an alteration of the screen size and geometry. This included extending the screen horizontally (from 180 to 230 degrees) and adding a floor screen and projector. It is important to note that the projection screen curved smoothly from the wall projection to the floor projection, resulting in an overall screen geometry that can be described as a quarter- sphere. Vertically, the screen subtends 125 degrees (25 degree of visual angle upwards and 100 degrees downwards from the normal observation position).

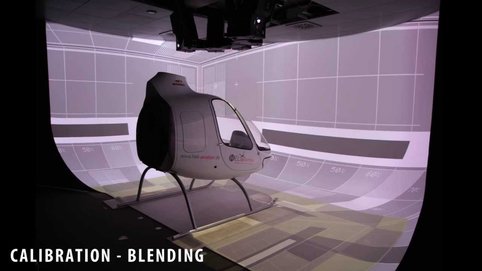

In 2011 the image generation and projection setup was significantly updated. The existing four JVC SX21 DILA projectors (1400x1050) and curved mirrors were replaced with six EYEVIS LED DLP projectors (1920x1200), thereby simplifying the projection setup and increasing the overall resolution. In order to compensate for the visual distortions caused by the curved projection screen, as well as to achieve soft-edge blending for seamless overlap areas, we have developed a flexible warping solution using the new warp and blend features of the NVIDIA Quadro chipsets. This solution gives us the flexibility of a hardware-based warping solution and the accuracy of a software-based warping. The necessary calibration data for the image warping and blending stages is generated by a new camera-based projector auto-calibration system (DOMEPROJECTION.COM). Image generation is handled by a new high-end render cluster consisting of six client image generation PCs and one master PC. To avoid tearing artifacts resulting from the multi-projector setup, the rendering computers use frame-synchronized graphics cards to synchronize the projected images.

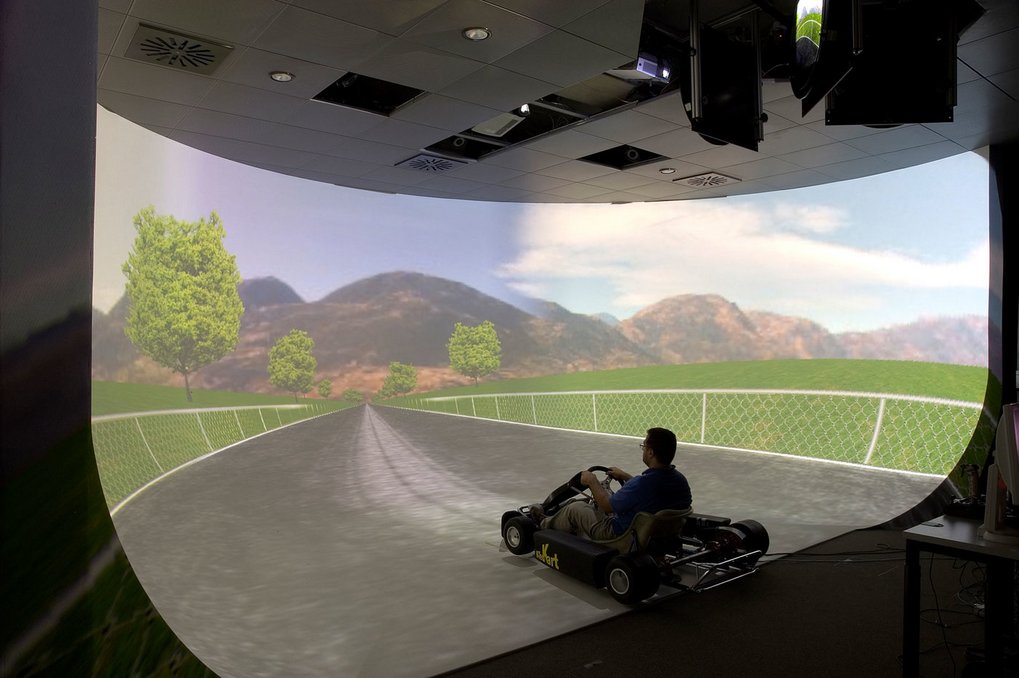

In addition to improving the visual aspects of the system, we increased the quality, number, and type of input devices. Participants in the experiments can, for example, interact with the virtual environment via actuated Wittenstein helicopter controls, joysticks, a space mouse, steering wheels, a Go-Kart, or a virtual bicycle (VRBike). Furthermore a Razer Hydra 6DOF joystick can be used for wand navigation and small volume tracking. Some of the input devices offer the possibility of force-feedback. With the VRBike, for example, one can actively pedal and steer through the virtual environment, and the virtual inertia and incline will be reflected in the pedals' resistance.

This video illustrates the use of our semi-spherical projection screen for flight control experiments. Six projectors are creating a seamless large field-of-view of 230 degrees horizontally and 125 degrees vertically.

This video illustrates the use of our semi-spherical projection screen for flight control experiments. Six projectors are creating a seamless large field-of-view of 230 degrees horizontally and 125 degrees vertically.
https://www.youtube.com/watch?v=T20ttraAoag
